Feature #27171
[OEE][Performance] กราฟ Production Plan vs Actual แสดงแยกตาม child ของ asset ที่เลือก #kiro
Start date:
05/25/2026
Due date:
05/27/2026
% Done:
0%
Estimated time:
นำ AI มาช่วย(%):
0
Description
หน้า Performance Dashboard — ส่วน "Production Plan vs Actual with Efficiency Over Time" ปรับให้แสดงกราฟแยกตาม child ของ asset ที่เลือก
Logic การแสดงกราฟ
| เลือก asset | ลักษณะ | การแสดงกราฟ |

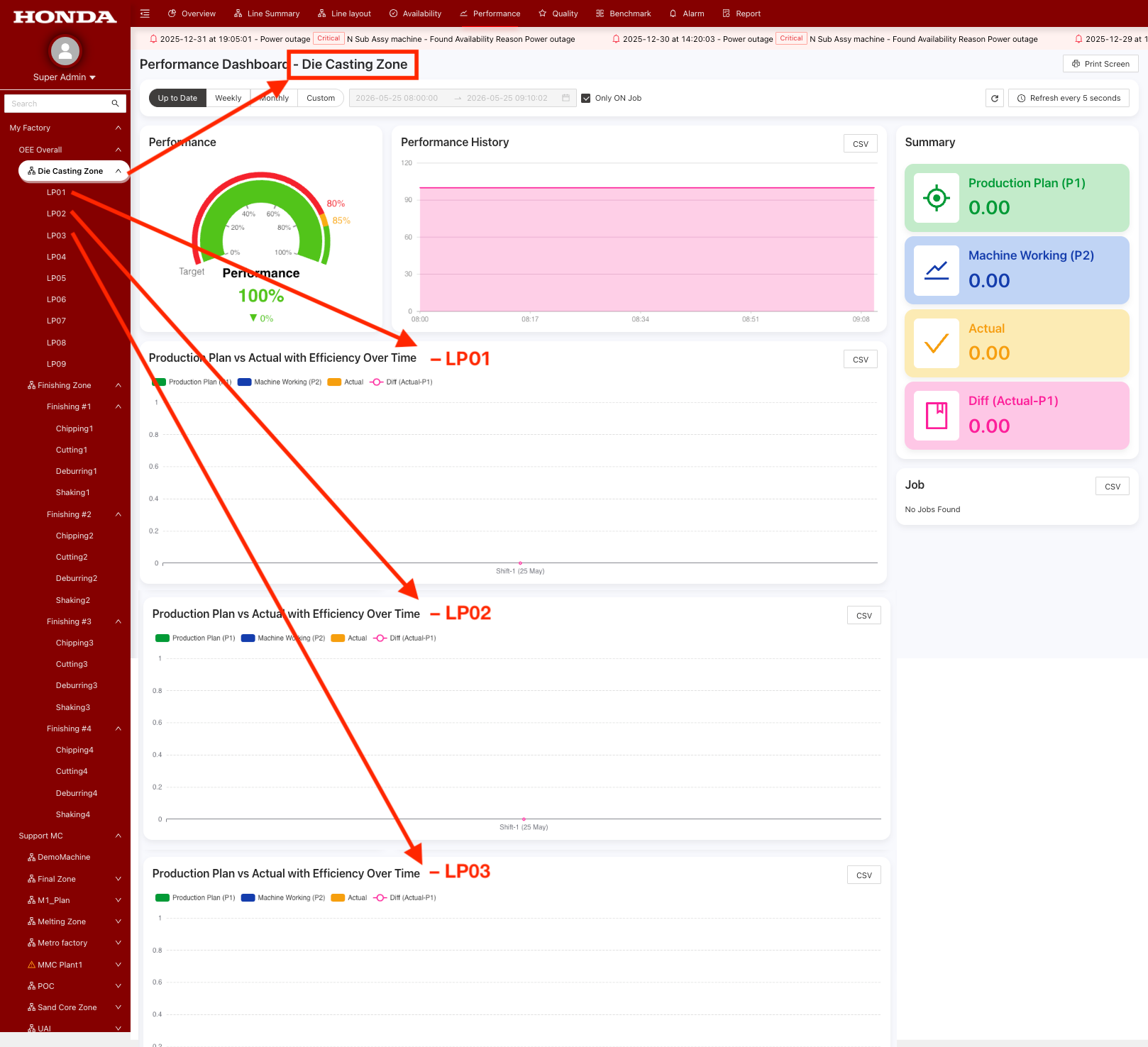

| Die Casting Zone | มี child เป็น machine 9 เครื่อง (LP01-LP09) | แสดง 9 กราฟ (กราฟละเครื่อง) |

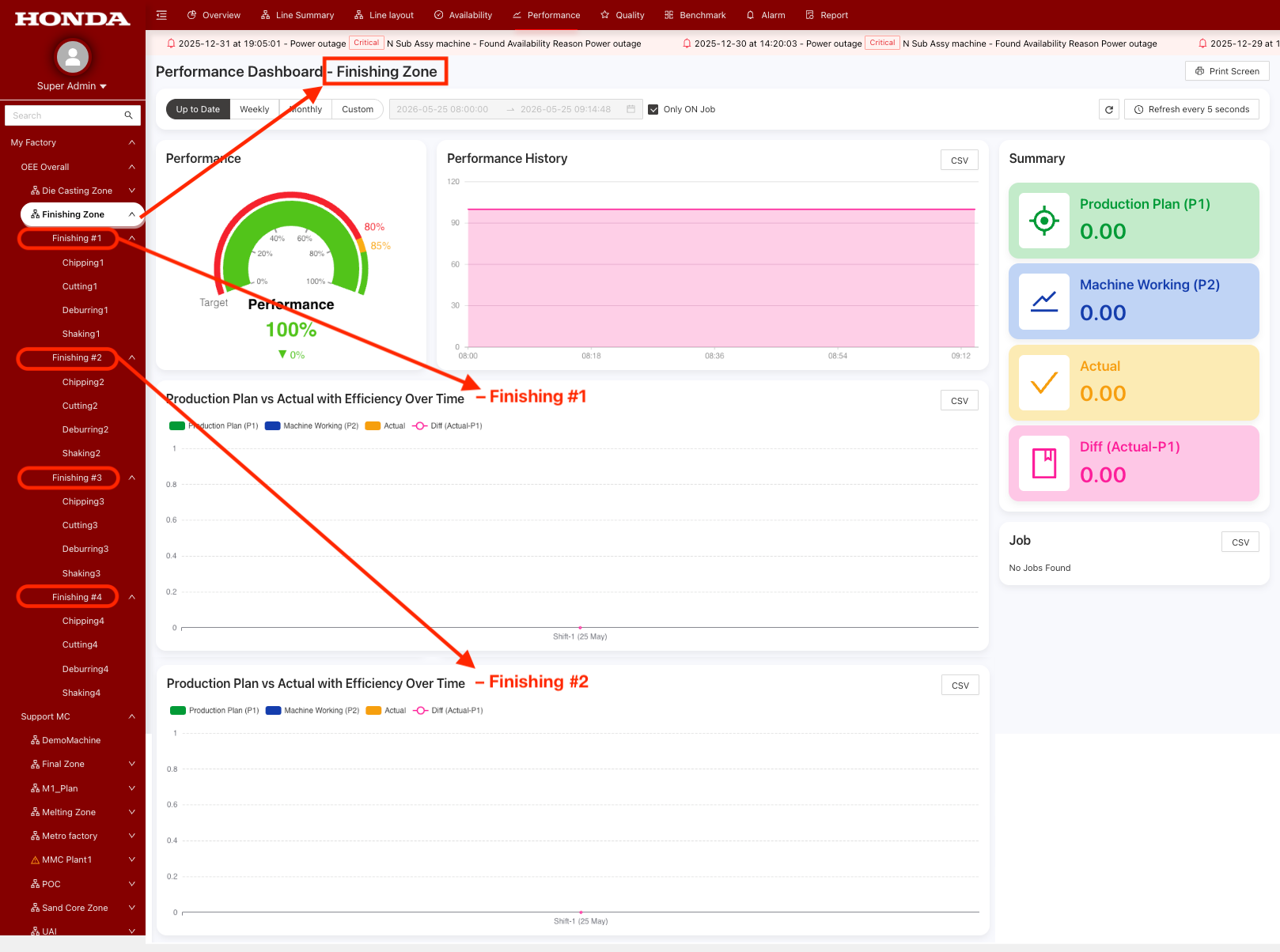

| Finishing Zone | มี child เป็น sub-zone 4 ชุด (Finishing #1-#4) | แสดง 4 กราฟ (กราฟละ sub-zone รวมข้อมูล machine ภายใน) |
| LP01 (is_machine = true) | เป็นเครื่องจักร | แสดงกราฟเดียวเหมือนเดิม |
- แต่ละกราฟ child ยังคงแสดง 4 series เหมือนเดิม: Production Plan (P1), Machine Working (P2), Actual, Diff (Actual-P1)
- กราฟ sub-zone (เช่น Finishing #1) = รวมข้อมูลของ machine ภายใน sub-zone นั้น (Chipping1 + Cutting1 + Deburring1 + Shaking1)
- แต่ละกราฟแสดง title เพิ่มชื่อ child asset ต่อท้าย เช่น "Production Plan vs Actual with Efficiency Over Time — LP01"
- Performance Gauge (ด้านซ้าย) → แสดงรวมทั้ง zone เหมือนเดิม
- Performance History (กราฟบน) → แสดงรวมทั้ง zone เหมือนเดิม
- Summary (ด้านขวา) → แสดงรวมทั้ง zone เหมือนเดิม
- Job section → แสดงรวมทั้ง zone เหมือนเดิม
ดู screenshot แนบประกอบ
Files
History
Updated by Suphawan Phiwngam 10 days ago
- Description updated (diff)
- Due date changed from 05/28/2026 to 05/27/2026
- Priority changed from Normal to High
Updated by Supparoek Sariphan 10 days ago
- Status changed from New to In Progress
- Assignee changed from Supparoek Sariphan to Suphawan Phiwngam
Updated by Supparoek Sariphan 10 days ago
- Assignee changed from Suphawan Phiwngam to Supparoek Sariphan
Updated by Supparoek Sariphan 10 days ago
- Status changed from In Progress to Resolved
- Assignee changed from Supparoek Sariphan to Suphawan Phiwngam
